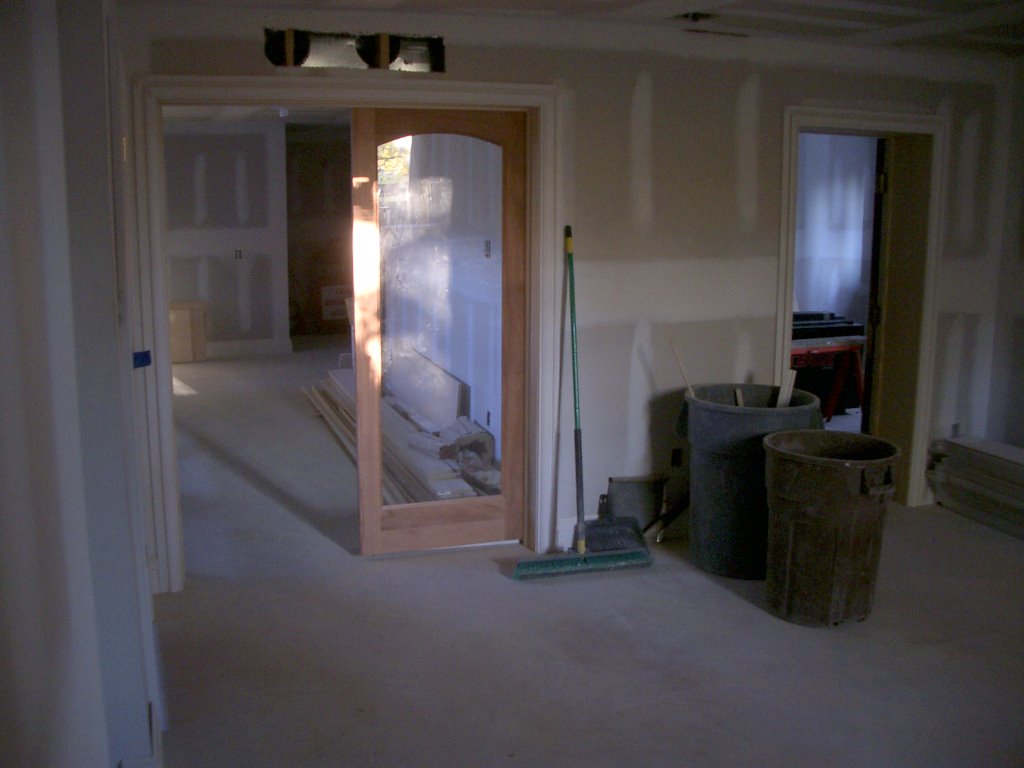

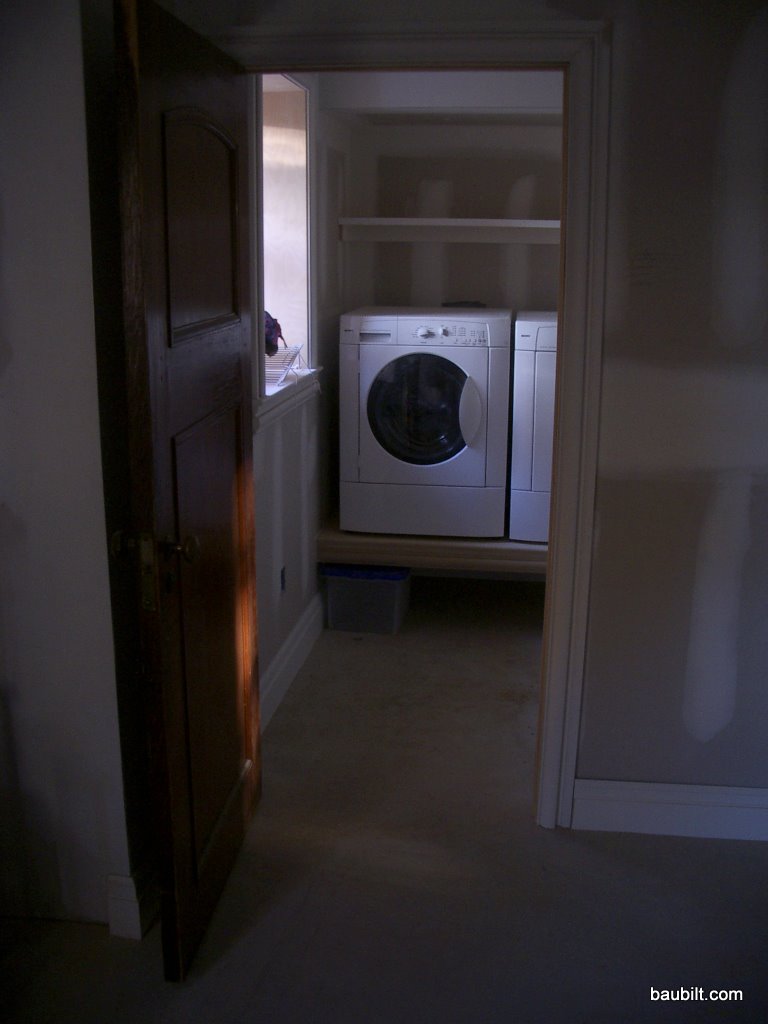

I reclaimed about seven doors from the main level for re-use on the lower level. These are very nice antique doors in oak and mahogany, originally in a hotel, and complete with numbered keys. I had another dozen or so doors custom made to match those antique doors pretty closely. I was very impressed by the prices at Allegheny Wood Works, and I was also happy with the resulting quality. I love that they post their price lists on the web. I ordered some of the doors in paint-grade poplar and some in mahogany to stain to match the antique doors.

For trim, we had the millwork supplier run custom casing and baseboard profiles to match what is upstairs. It’s remarkably inexpensive to do this. I think we paid $1.50 – $3.00 per linear foot for a complex casing milled from poplar. I don’t regret this for a second.

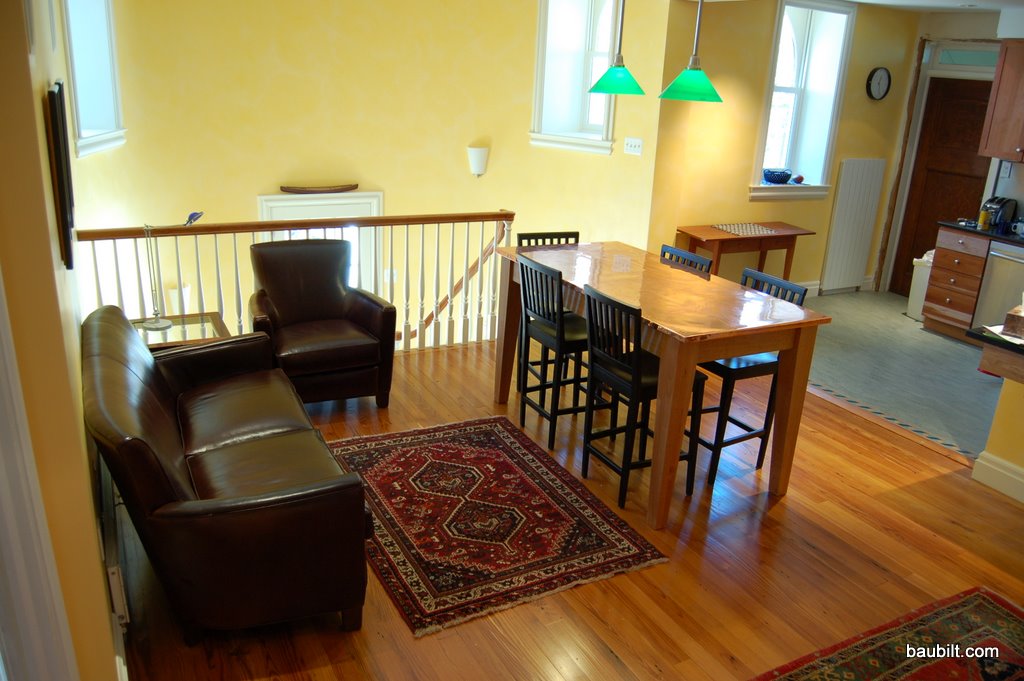

Most of this project focused on the lower level. However, because the spiral stair connected the lower level with the main level, we had to do a fair bit of work in the kitchen/dining area. I had done a “quick and dirty” kitchen renovation a few years ago myself and decided that it was good enough to leave in place. Thus, we mostly confined the main-level effort to the stairwell/apse area and the resulting open dining area adjacent to the kitchen.

I’ll start with how it ended up…and then show some of the steps.

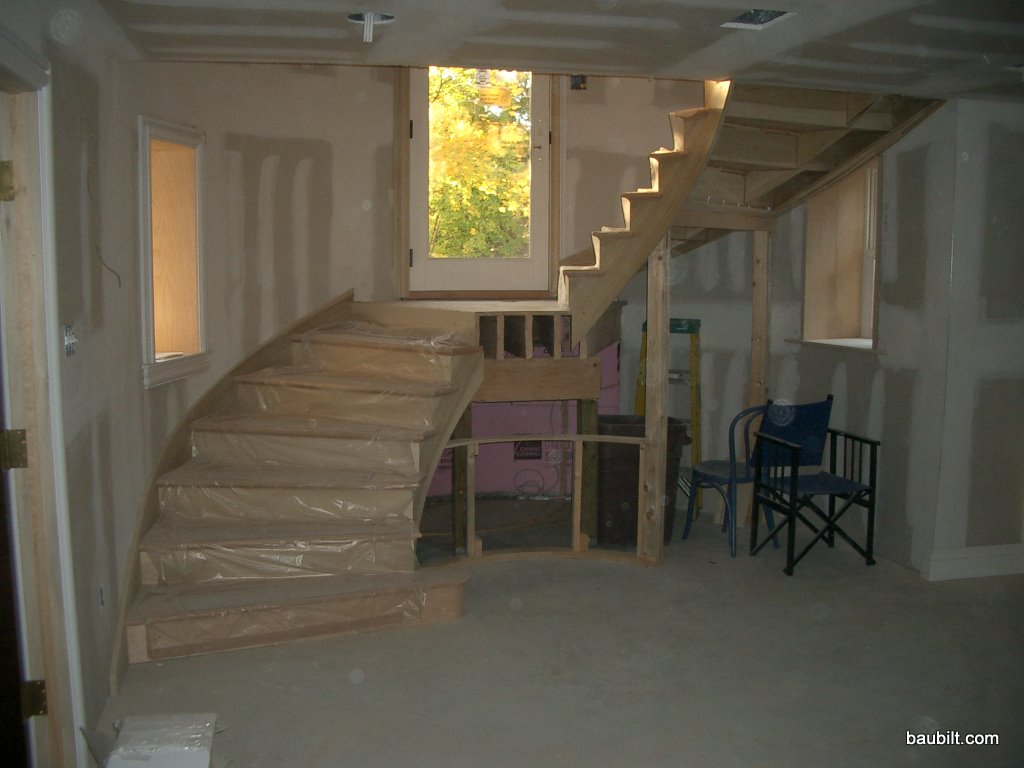

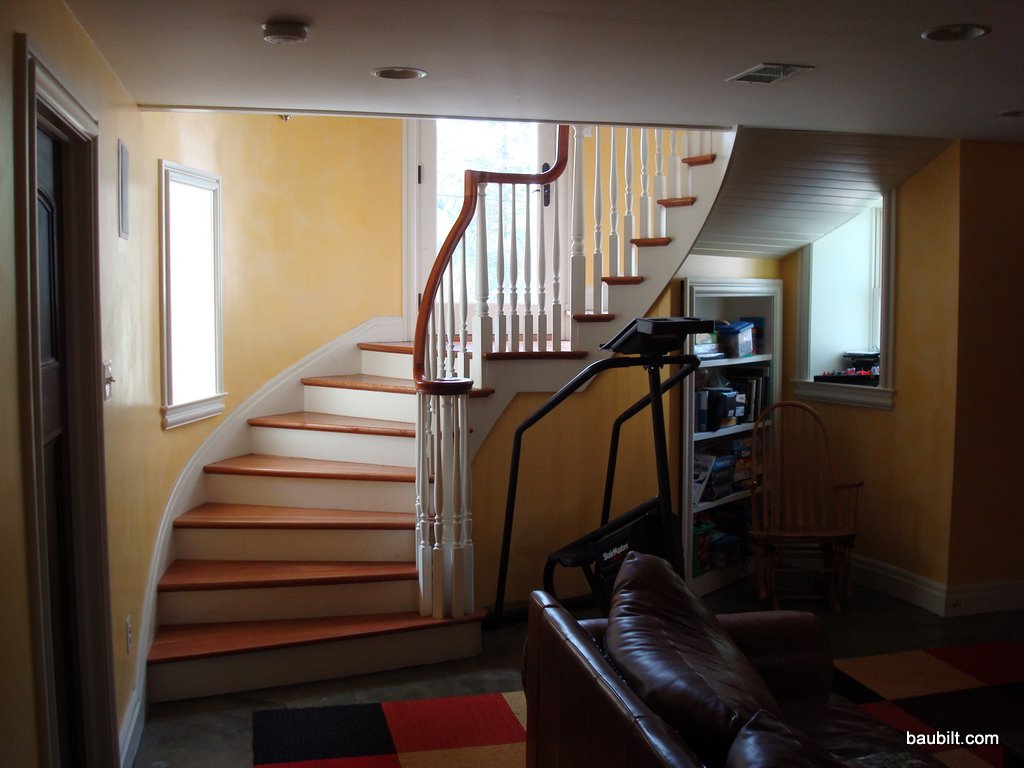

The big idea the architect brought to this project was to put a spiral stair in the apse to connect the main level with the lower level. Furthermore, there would be a door out to the back yard halfway down the stair off of a landing. Here are some shots of how we did that. A custom curved stair manufacturer Stairworks built and installed the basic stair and rail. They did a nice job…actually they did a nice job twice. They messed up a measurement the first time and had to completely rebuild it. To their credit, they didn’t even blink and just did it.
