Steel and Stone

Our church house was constructed with a rubble-stone foundation. That means basically that the builder dug a deep hole in the ground and then started constructing thick stone walls to form the perimeter of the structure. The walls are about 24 inches thick at the base. They seem to extend 2-4′ below the level of the lower-level floor, which is between 10′ and 6′ below grade depending on where one is on the slope of the site.

As the walls extend upward they become thinner. At the top of the building they are about 12-14″ thick. When the walls emerge from the grade, the outer face is nicely dressed and pointed, whereas the inside face remains pretty rough.

The main level of the church was supported by a single beam running the long way down the middle of the sanctuary with three cast-iron columns further supporting the beam and resting on a rubble-stone footing. There was just one stone column supporting a section of the wall under which the side entrance was located. We wanted to remove that column, and so installed a steel beam to support the wall, as shown in the photo.

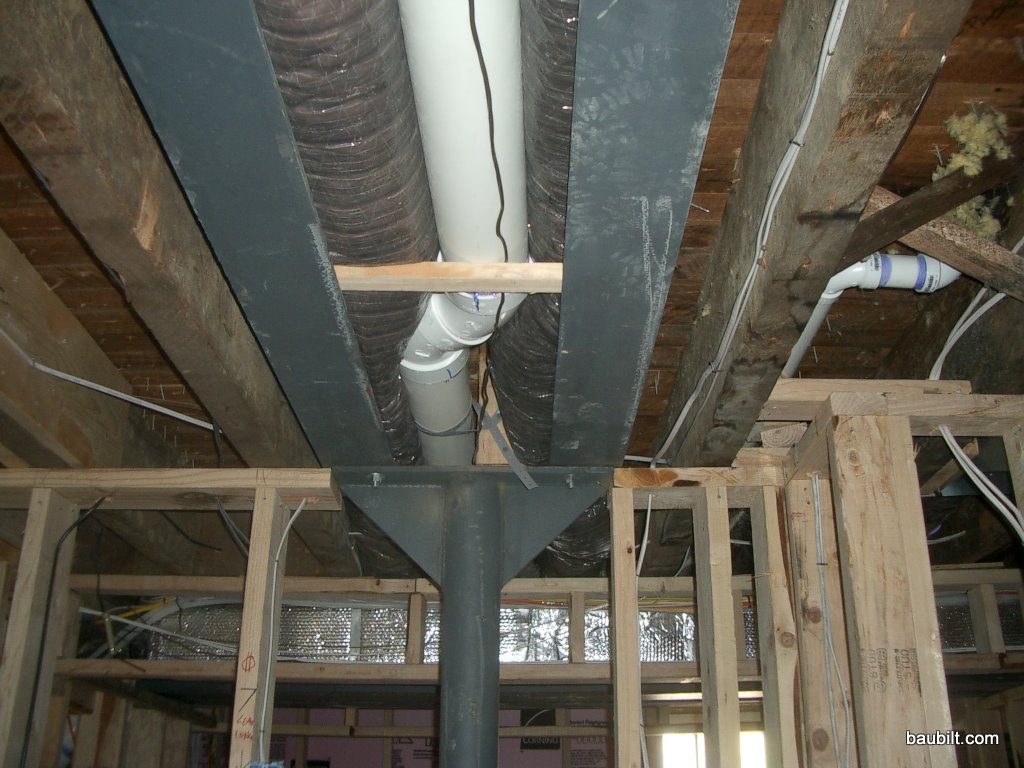

We also wanted to remove a column which was inconveniently located right in the center of the future family room. To do that we spanned the 16′ family room with more steel beams. One trick we played here to avoid any soffits across the room was to use a double I-beam (shown in the photo). That way, we could run the a/c duct and vent for the boys’ bathroom between the two I-beams, allowing the family room ceiling to be nice and flat.
